In recent years, some camera and hard disk video recorder manufacturers have begun to support RTSPS (RTSP over TLS)/SRTP, but the universal player VLC currently does not support it. It is unknown whether there are plans for future support. This article takes Axis cameras as an example to introduce the process of configuring RTSPS/SRTP for H5S.

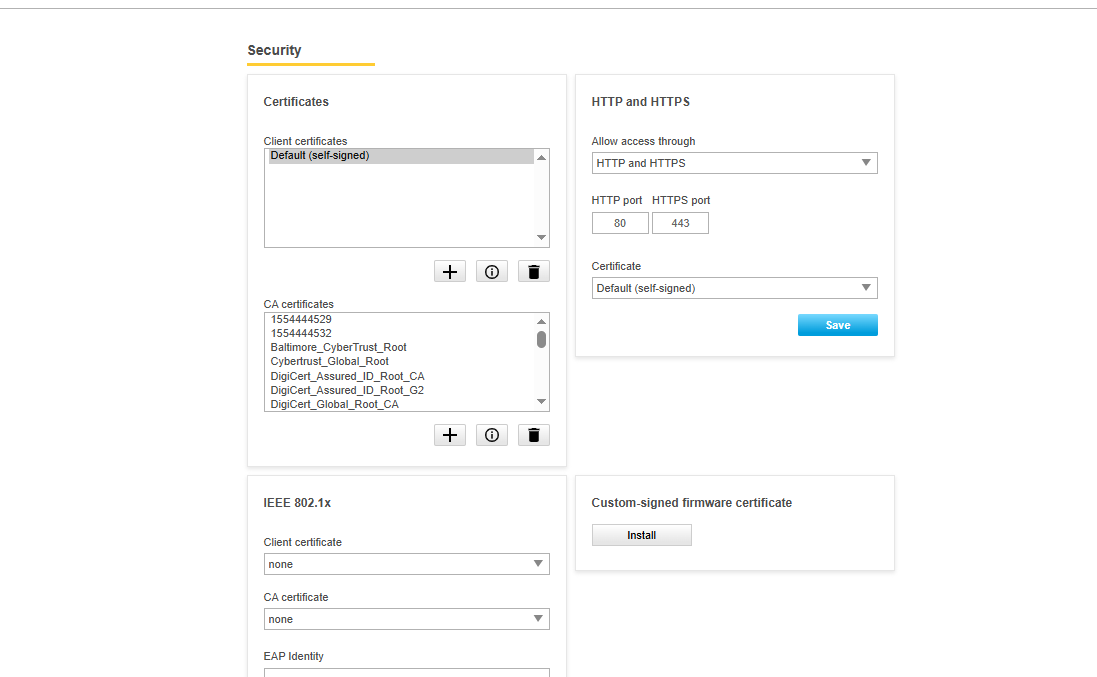

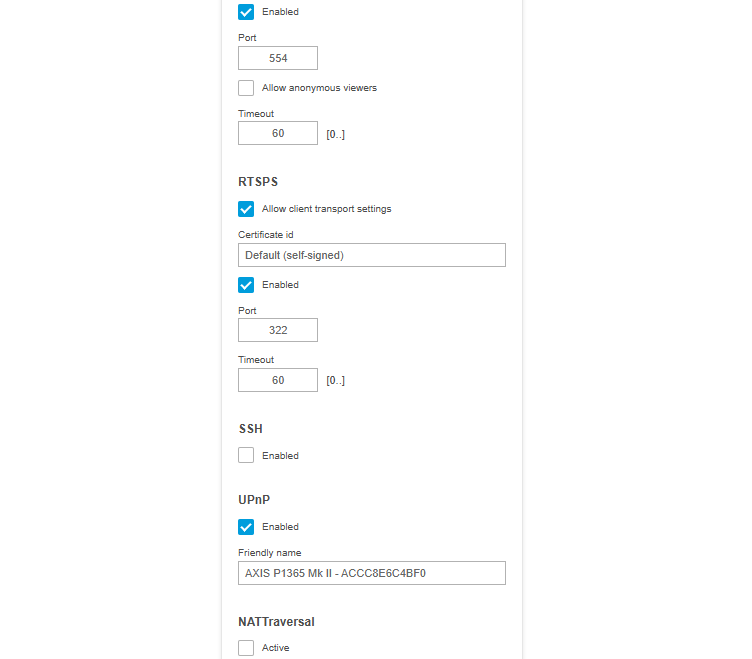

1. First go to axis camera plainconfig to enable RTSPS. Copy the Certificate id name from Certificates Page.

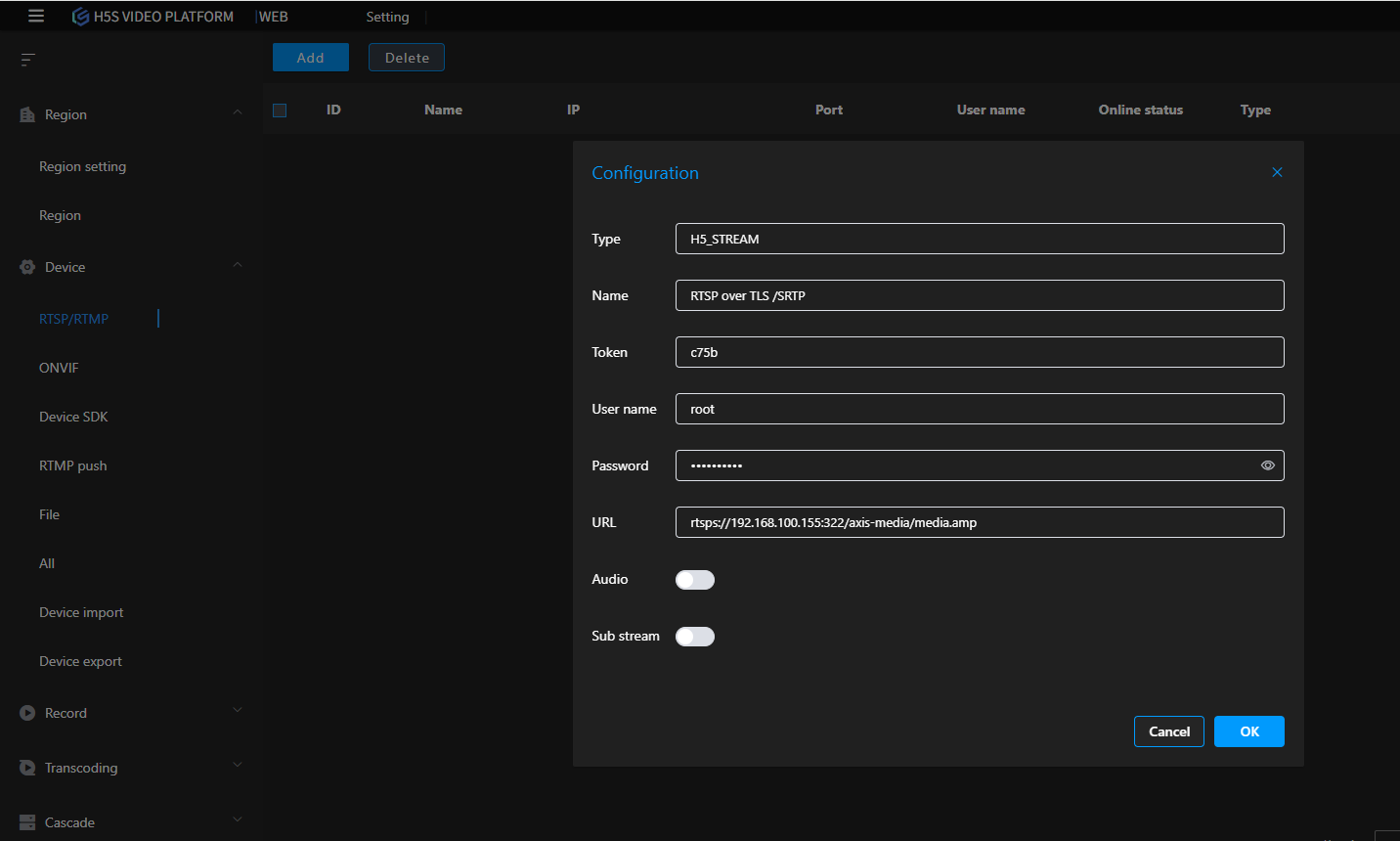

2. Add the RTSPS address to H5S

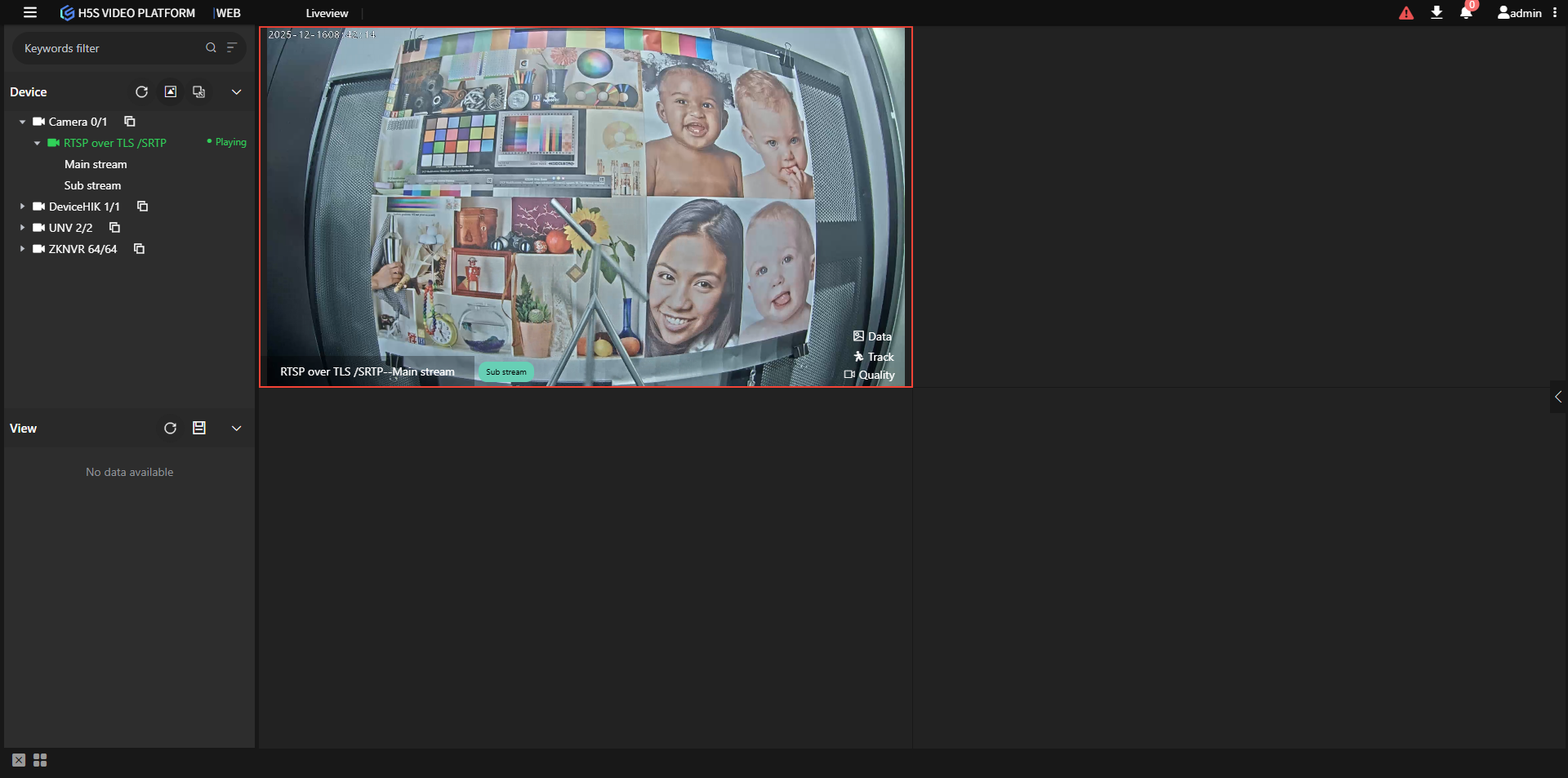

3. Live view the camera video.

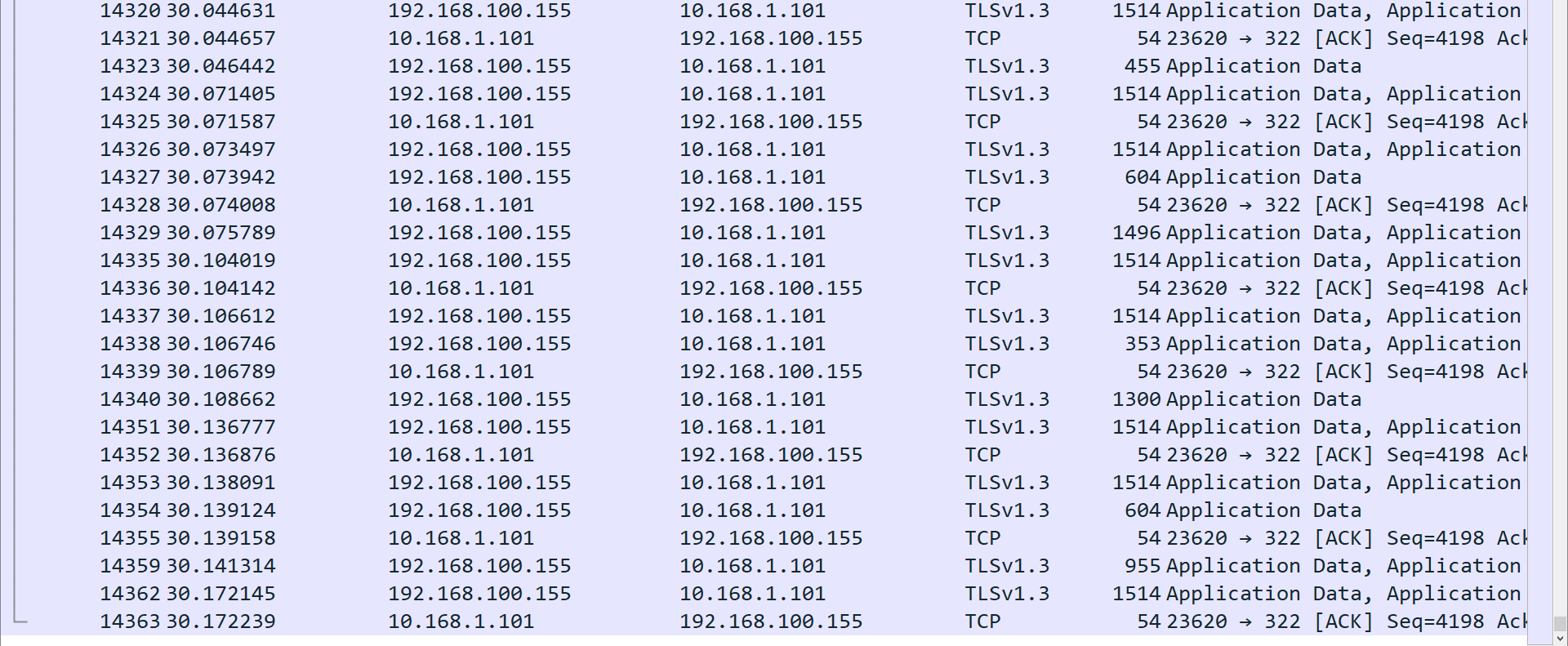

4. Check the data is TLS based.
5. Last let we check the SDP and Setup message, the message is SAVP.
o=- 11343850218222093006 1 IN IP4 192.168.100.155
s=Session streamed with GStreamer
i=rtsp-server
t=0 0
a=tool:GStreamer
a=type:broadcast
a=range:npt=now-
a=control:rtsp://192.168.100.155:322/axis-media/media.amp
m=video 0 RTP/SAVP 96
c=IN IP4 0.0.0.0
b=AS:50000
a=rtpmap:96 H264/90000
a=fmtp:96 packetization-mode=1;profile-level-id=420029;sprop-parameter-sets=Z0IAKeKQDwBE/LgLcBAQGlAAbd0AGb/MAPEiKg==,aM48gA==
a=key-mgmt:mikey AQAFAFUF/c4BAACA4miHAAAAAAsA7OspWXq5wwQKEBcknoFa8xBys6kR5cqK3JUBAAAAFQABAQEBEAIBAQMBCgcBAQgBAQoBAQAAACIAIAAepbnlvK4dPo4UUdtSdIUZ6QzlqXSO+NzRHQefk5TGAA==
a=ts-refclk:local
a=mediaclk:sender
a=recvonly
a=control:rtsp://192.168.100.155:322/axis-media/media.amp/stream=0
a=framerate:30.000000
a=transform:-1.000000,0.000000,0.000000;0.000000,-1.000000,0.000000;0.000000,0.000000,1.000000
m=audio 0 RTP/SAVP 0
c=IN IP4 0.0.0.0
b=AS:64
a=rtpmap:0 PCMU/8000
a=key-mgmt:mikey AQAFAFCcvxwBAABcD5nfAAAAAAsA7OspWXs0pEwKELRJYm2aBjIz4FUkeKoxNH8BAAAAFQABAQEBEAIBAQMBCgcBAQgBAQoBAQAAACIAIAAeNRZO8EuIqVuO0x/RqO2ydNFon+QehKtwsq4kOVENAA==
a=ts-refclk:local
a=mediaclk:sender
a=recvonly
a=control:rtsp://192.168.100.155:322/axis-media/media.amp/stream=1
SETUP rtsp://192.168.100.155:322/axis-media/media.amp/stream=1 RTSP/1.0
CSeq: 6
Authorization: Digest username="root", realm="AXIS_ACCC8E6C4BF0", nonce="000003deY585181f50aea0e72985ceaad4923e05d793c25", uri="rtsp://192.168.100.155:322/axis-media/media.amp/", response="d15b70efe03b24d66236c28c9b442074"
Transport: RTP/SAVP/TCP;unicast;interleaved=2-3
Session: .+GwPivnIsjOL2Mh
KeyMgmt: prot=mikey; uri="rtsp://192.168.100.155:322/axis-media/media.amp/stream=1"; data="AQAFAH6TI0wBAACI6+7WAAAAAAsA7OspUf4JAt4KENxSkQ45q7XcXC+xbh2gUBQBAAAAGwABAQEBEAIBAQMBFAQBDgcBAQgBAQoBAQsBCgAAACcAIQAerjVFRvdx34mJkCVhPN7XQ7ucAdaIRvAr6W+79ImABLEaU6YA"
